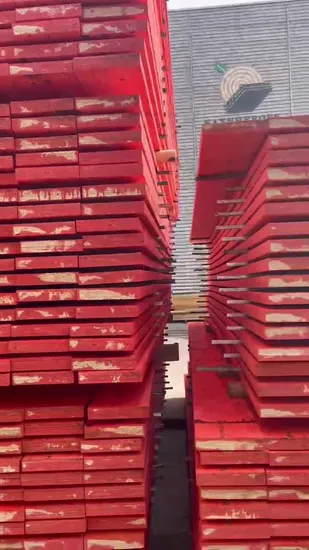

F17/F11/F8/E10 / E14 100% Pine Structural LVL Board with Benchmark Certification Used for Construction

Basic Info.

Model NO.	40*90*4200mm
Material	Poplar,Eucalyptus
Grain	Straight Grain
Bonding Strength	Ⅲ(Nc)
Plywood Type	Veneer Boards
Formaldehyde Emission Standards	E1, Carb, EPA
Specifications	1830-6405
Place of Origins	China
Grade	Excellent Grade
Usage	Indoor, Outdoor
Name	E14 Australian Market Larch Pine LVL Constrction P
Glue	WBP Phenolic Glue ,Dyna WBP Phenolic Glue
Certifaction	FSC, Asnzs
Transport Package	Exporting Standard
Specification	90*45*4200mm any size
Trademark	HC
Origin	China
HS Code	4412999990
Production Capacity	300000m3/Year

Packaging & Delivery

Package Size50.00cm * 50.00cm * 3.00cm Package Gross Weight3.000kg

Product Description

Product Description
Structural LVL Advantage:

1. High Strength
2. Dimensional stability
3. Guaranteed technical date
4. Corrosion resistance
5. Easy length identification on site-ends are colour coded by length
6. Faster and easier to install-enhances productivity and reduces
7. According client's require to produce
8. True sourced from environmentally sustainable plantation timer
9. Veneer are bonded together using a type"A"(marine) bond, which has proven performance for in excess of 50 years
10. Quickly assembly due to the ready-to-use prefab panels and installation of high strength frames without heavy lifting equipment.
11. Light weight of structures results in less loads on soils and gives way to the usage of economical foundations.
12. Usage of timber frames and modern insulation materials allows to construct 'breathing' houses, being warm during winter time and cool in summer.
13. Houses have practically no shrinkage

Structural LVL Construction Overview: Laminated Veneer Lumber(LVL) is used in a variety of applications including beams, joists,trusses, frames, roof, floor and wall elements, components for the joinery industry(doors, stairs, windows) and vehicle industry, concrete formwork and scalffold boards.
Benefits of Form LVL:

• Enhanced durability and safety(OHSA/ANSI/BS/EN)
• Unrivalled structural rigidity, stability and strength
• Proven to last at least twice as long as solid wood equivalents
• 10% lighter than solid wood equivalents
• No metal end band required
• No on-going maintenance or remedial repairs required
• Excellent electrical insulation properties
• Excellent anti-corrosive and chemical properties
• Inherent strength properties of structural LVL mean that it can be cross-cut to exact lengths

A high performance more sustainable alternative to lumber, LVL beams, headers and columns are used in structural applications to carry heavy loads with minimum weight. Murphy structural LVL products are manufactured in a controlled environment resulting in straighter, stronger and more uniform product compared to milled lumber, creating a more stable and reliable product than dimensional lumber because it doesn't twist and warp or shrink over time.
We can provide a number of specialty services, including the followings:
Private label provider
Custom stamping
Custom packaging
Literature support

Structural LVL Description:

Materials	Larch pine ,Radianta pine
Grade	F17 , F8
Glue	Phenolic A-bond
Popular sizes(Length can be up to 12000mm), or as be required	90x35mm
	140x35mm
	170x35mm
	190x35mm
	240x35mm
	90x45mm
	120x45mm
	140x45mm
	150x45mm
	170x45mm
	190x45mm
	200x45mm
	240x45mm
	290x45mm
	300x45mm
	360x45mm
	400x45mm
	90x58mm
	130x58mm
	150x58mm
	170x58mm
	200x58mm
	240x58mm
	300x58mm
	360x58mm
	400x58mm
	450x58mm
	300x75mm
	400x75mm
	525x75mm
Density	730-782kg/CBM
Loading	40-CBM/40'GP
